Specification:

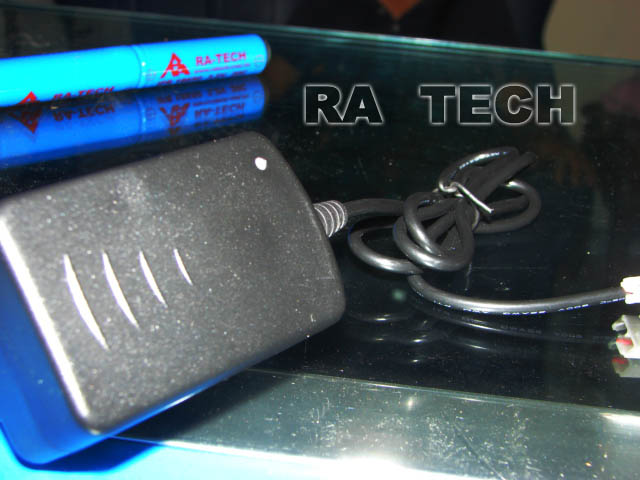

INPUT：100-240V 50/60Hz
OUTPUT： 11.1V 1A

---

Size:

---

Note:

---

Test movie link:

---

Price: $ 10 USD

---

---

Specification:

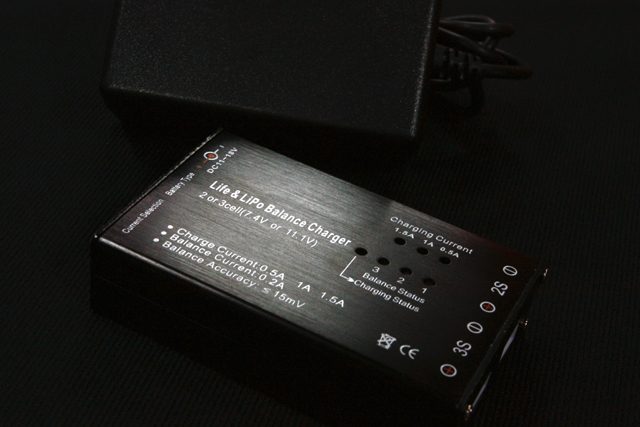

• 2 or3 cell (7.4V or 11.1V)
• Charge Current: 0.5A 1A 1.5A
• Installation notes


---

Size:

---

Note:

---

Test movie link:

---

Price: $ 40 USD

---

---

Specification:

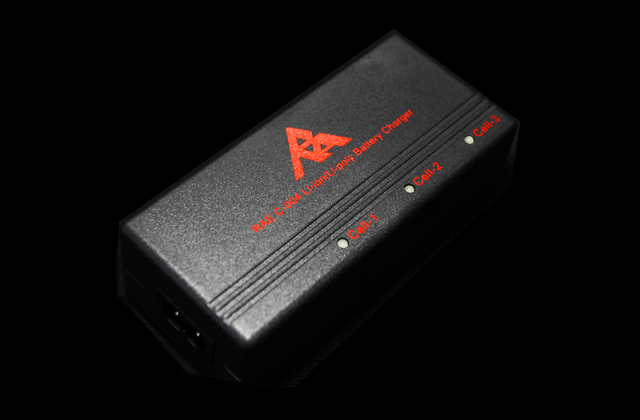

INPUT：AC100~240V/50~60Hz

• Could use for 2Cell (7.4V) or 3Cell( 11.1V) Li-Po battery
  LED light in red= charging, LED light in green= charging finished


• Warning,
  2Cell (7.4V) and 3Cell( 11.1V) Li-Po battery can’t charge at the same time
  please keep in a cool place when you charging
  pull out the plug after using.




---

Size:

---

Note:

---

Test movie link:

---

Price: $ 30 USD

---

---

Specification:
INPUT：AC100~240V/50~60Hz
OUTPUT： 12.6V/500mA

---

Size:L:69mmW:38.5mmH:48.7mm

---

Note:

---

Test movie link:

---

Price: $ 16.7 USD

---

---

Specification:
INPUT：AC100~240V/50~60Hz
OUTPUT：8.4V/600mA

---

Size:L:69mmW:38.5mmH:48.7mm

---

Note:

---

Test movie link:

---

Price: $ 16.7 USD

---

---

Specification:
INPUT：AC110V/50~60Hz,DC9V-15V
OUTPUT：3.7V,7.4V 11.1V 0.5~2A

---

Size:L:132mmW:82.4mmH:34.7mm

---

Note:

---

Test movie link:

---

Price: $ 60 USD

---

---

Specification:
INPUT：
OUTPUT：

---

Size:

---

Note:

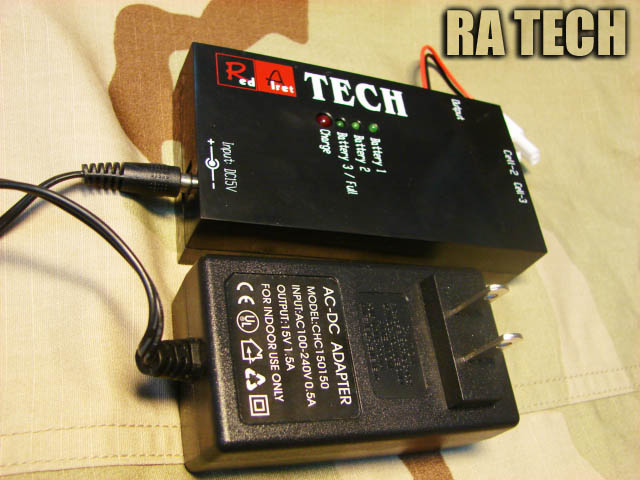

RLED:Charging indicator LED/Battery fault indicator LED. Red LED "ON" in charging , Red LED "FLASH" in battery fault.Cell 3 Balancing indicator LED / Batter Pack fully charge indicator LED.Cell 3 Discharging indicator LED.

GLED3:When the batterypack is finished charging, the GLED3 is on and other LED is off.

GLED2:Cell 2 Balancing indicator LED。Cell 2 Discharging indidcator LED

GLED1:Cell 1 Balancing indicator LED。Cell 1 Discharging indicator LED

2. Opration

2~1. When DC(15V) adaptor plug into the charger , all LED will flash once and go to stand by(All LED trun off).

2~2.Put 2-Pack Battery line into Cell-2 /Cell-3 port(detective port) , and put Battery 2P line into Ouput port(charging connector).

2~3. When the battery is normal, it will be balancing the battery first. The maximum balacing time is 20 minutes and the maximum balancing discharging current is 300mA

2~4. After 20 minutes balacing time, it begins to charge and the charging current between 600mA~700mA(constant cruuent charge). It keep balancing before finishing charging. After finishing the charge, the GLED3 will continue flash.

2~5. In charging, If you take the battery out from detective port, it will stop charging and go to standby condition.

2~6. In charging, if you take the battery put from the detective port, the battery will continue balancing and will stop balancing discharge when the battery discharges to the 3.1V.

2~7. If the RLED flash in opration, please replug all the connection port. If itis still the same, please check the bettery.

2~8. When charger end is over, Please pull out the battery from the adaptor.

3. Prohibited put 2-pack and 3-pack battery into detective port at the same time.

4.Use 15V/1A~1.5A Adaptor.

---

Test movie link:

---

Price: $ 50 USD

---

---

Specification:
INPUT：11~15v，1.5A
OUTPUT：OUTPUT：11.1V, 7.4V

---

Size:L:80.85mmW:11.5mmW:38.15mm

---

Note:

---

Test movie link:

---

Price: $ 26.7 USD

---

---

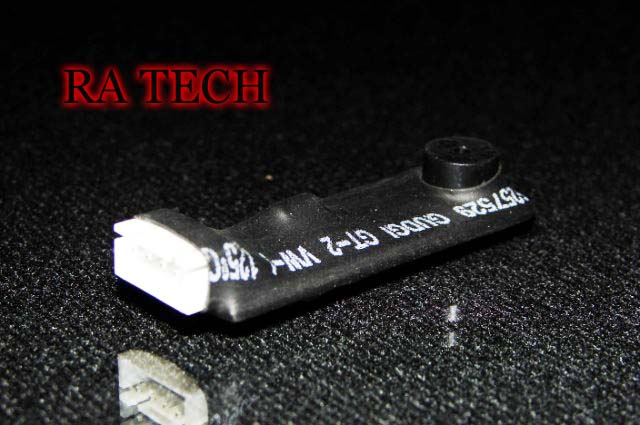

Specification:For 11.1V

---

Size:L:52.9mmW:16.8mmH:9.24mm

---

Note:

---

Test movie link:

---

Price: $ 15 USD

---
